Endolumix Pro Specs
The Endolumix Pro combines advanced laser engineering with intuitive usability, delivering a powerful and versatile platform for modern aesthetic practitioners. Designed with precision and adaptability in mind, the system integrates dual-wavelength technology to support a broad range of cosmetic and external soft-tissue procedures. Its refined design, responsive controls, and configurable settings allow practitioners to tailor treatments with accuracy, consistency, and confidence across different aesthetic applications.
This technical specifications page provides a detailed overview of the Endolumix Pro’s power capabilities, system performance, and core technical features, helping clinics and professionals better understand the technology behind the platform. You will also find an overview of the accessories and components included with the device, showcased through the accompanying image carousel, highlighting the complete professional solution delivered with every Endolumix Pro system.
High-Power Performance
– Wavelength capability: 650 nm – 1470 nm
– Power output: Up to 40W (adjustable)
– Highly customizable settings to match preferred aesthetic protocols
– Developed using German engineering and American chip technology for stability and reliability
– Built-in cooling system for comfortable use during extended sessions
Advanced Engineering & Design
– Main unit with intuitive control panel
– Laser fibre compatibility for focused energy delivery
– Precision handpiece designed for accurate aesthetic targeting
– Integrated system monitoring for stable, reliable operation
– User-friendly interface with 10.4-inch LED touchscreen, power control, and emergency-stop functionality
Technical Specs
Laser Type
Diode Laser
Wavelengths
980nm + 1470nm
Laser Power
Max 30W (980nm), Max 17W (1470nm)
Working Mode
Continuous, Pulse, Single
Aiming Beam
Adjustable 650nm Red Indicator
Fiber Diameter
400μm / 600μm / 800μm (Optional)
Fiber Connector
SMA905 International Standard
Pulse Width
0.1s – 10s
Pulse Delay
0.1s – 10s
Voltage
110–240V, 50–60Hz
Machine Size
43 × 31 × 23 cm
What’s Included

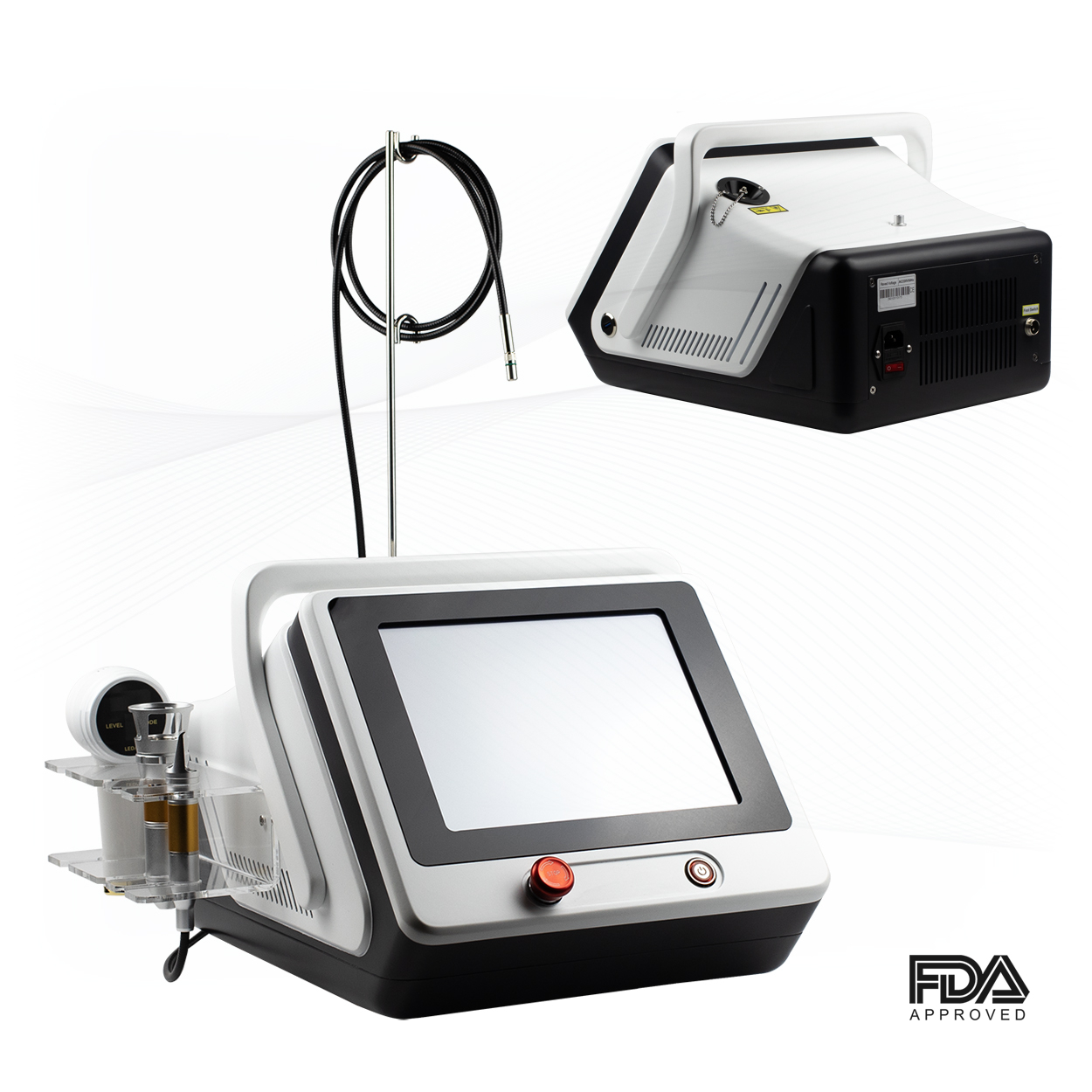

– Endolumix Pro Machine

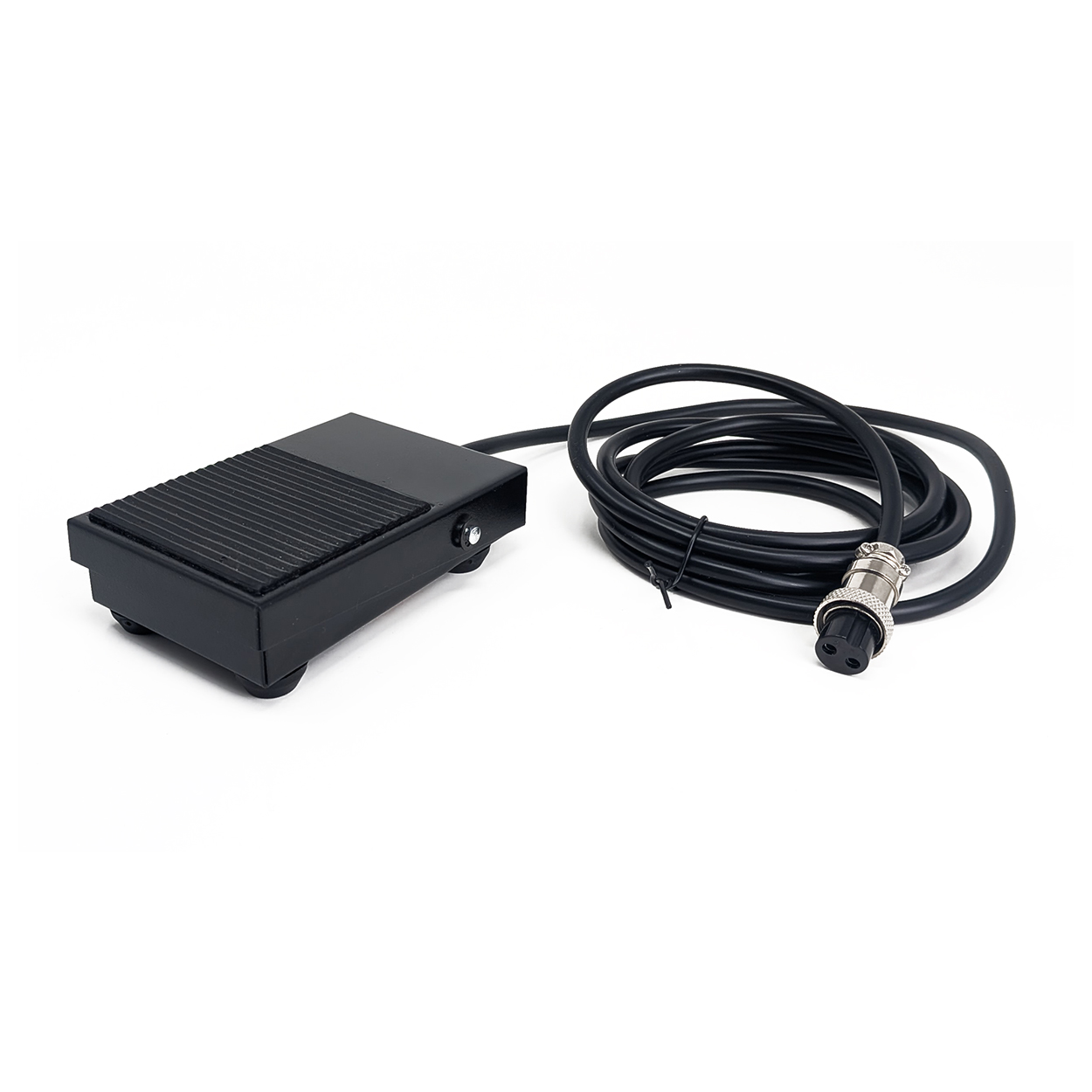

– 1 x Foot switch w/ extended cable

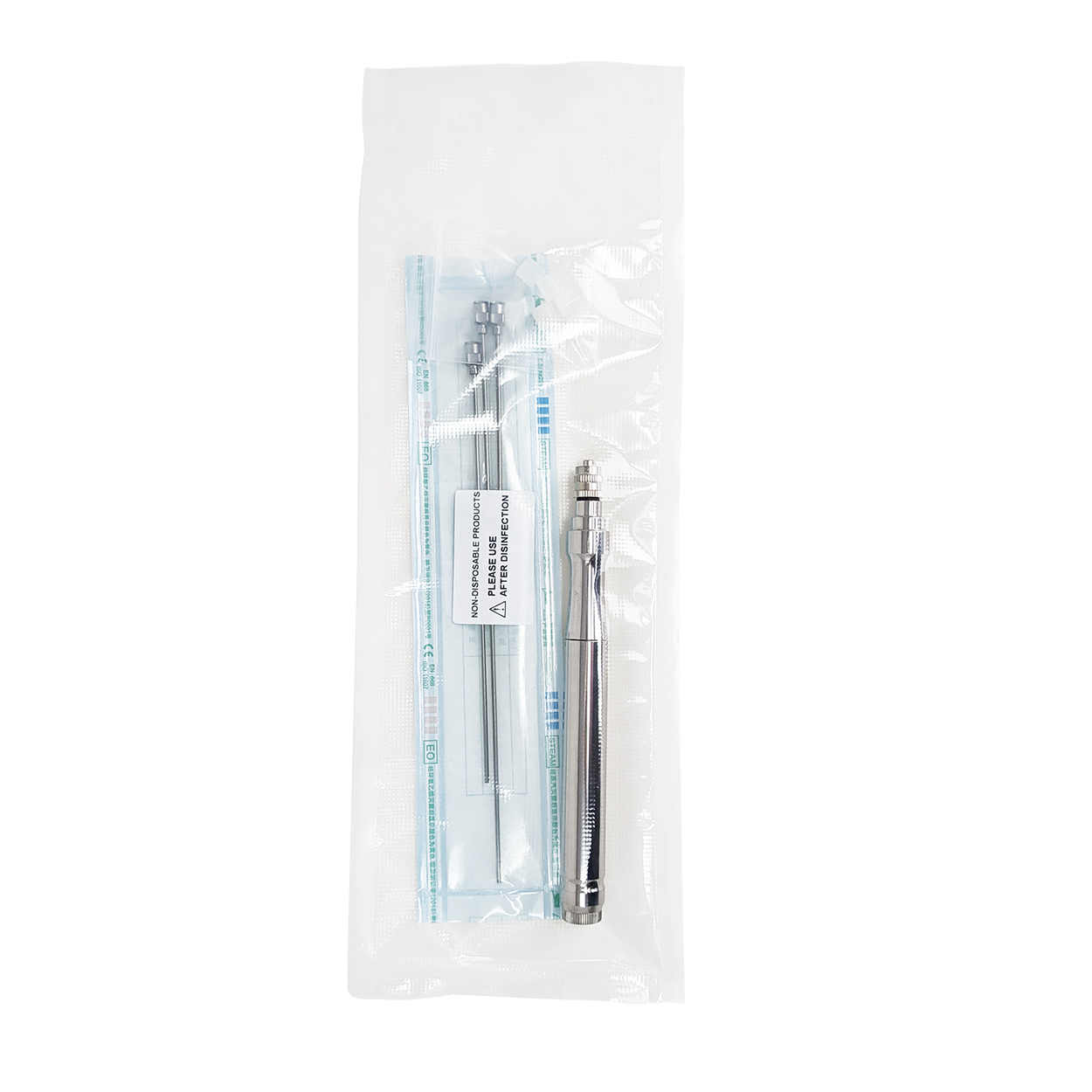

– 3 x Cannulas & Handpiece

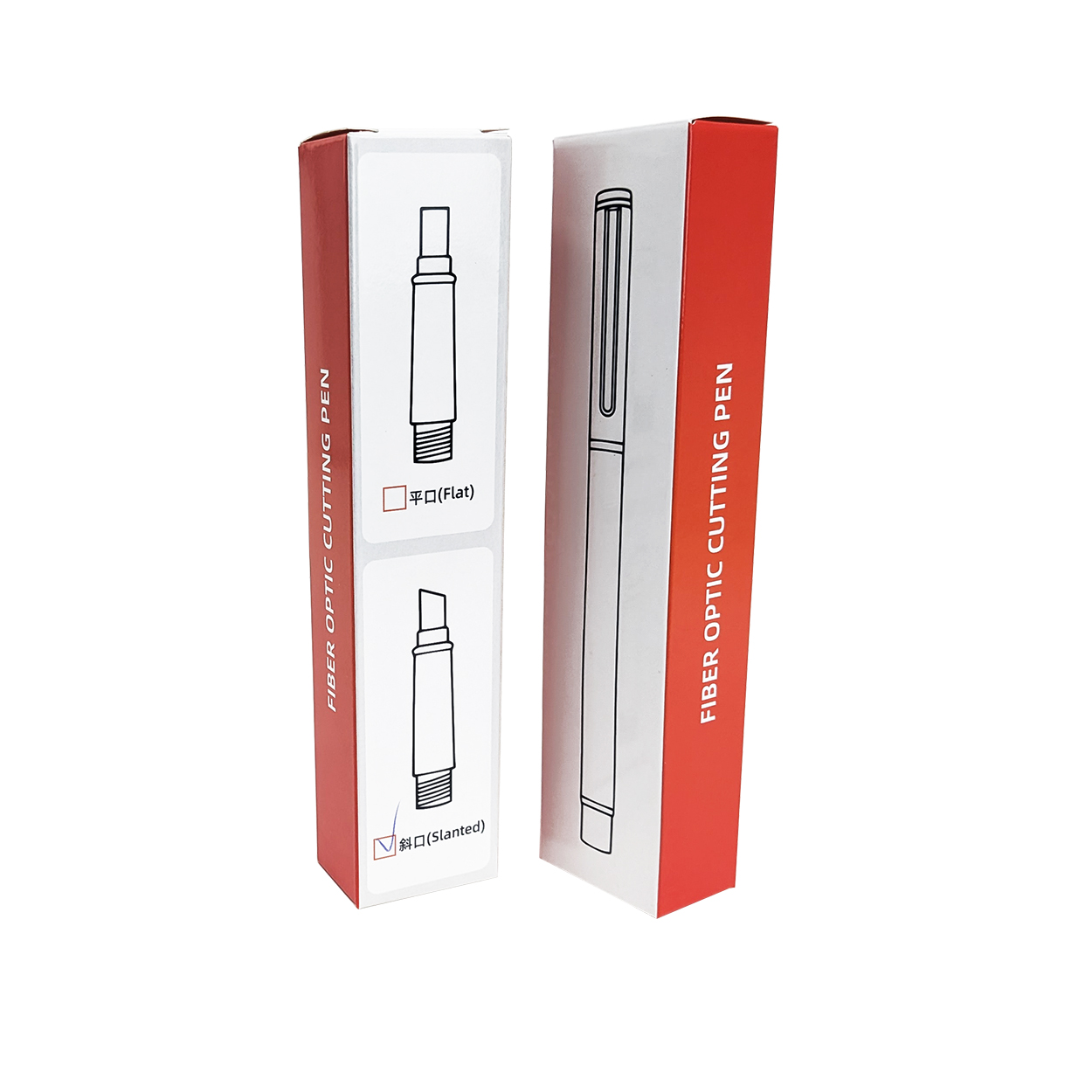

– 1 x Fibre Optic Cutting Pen

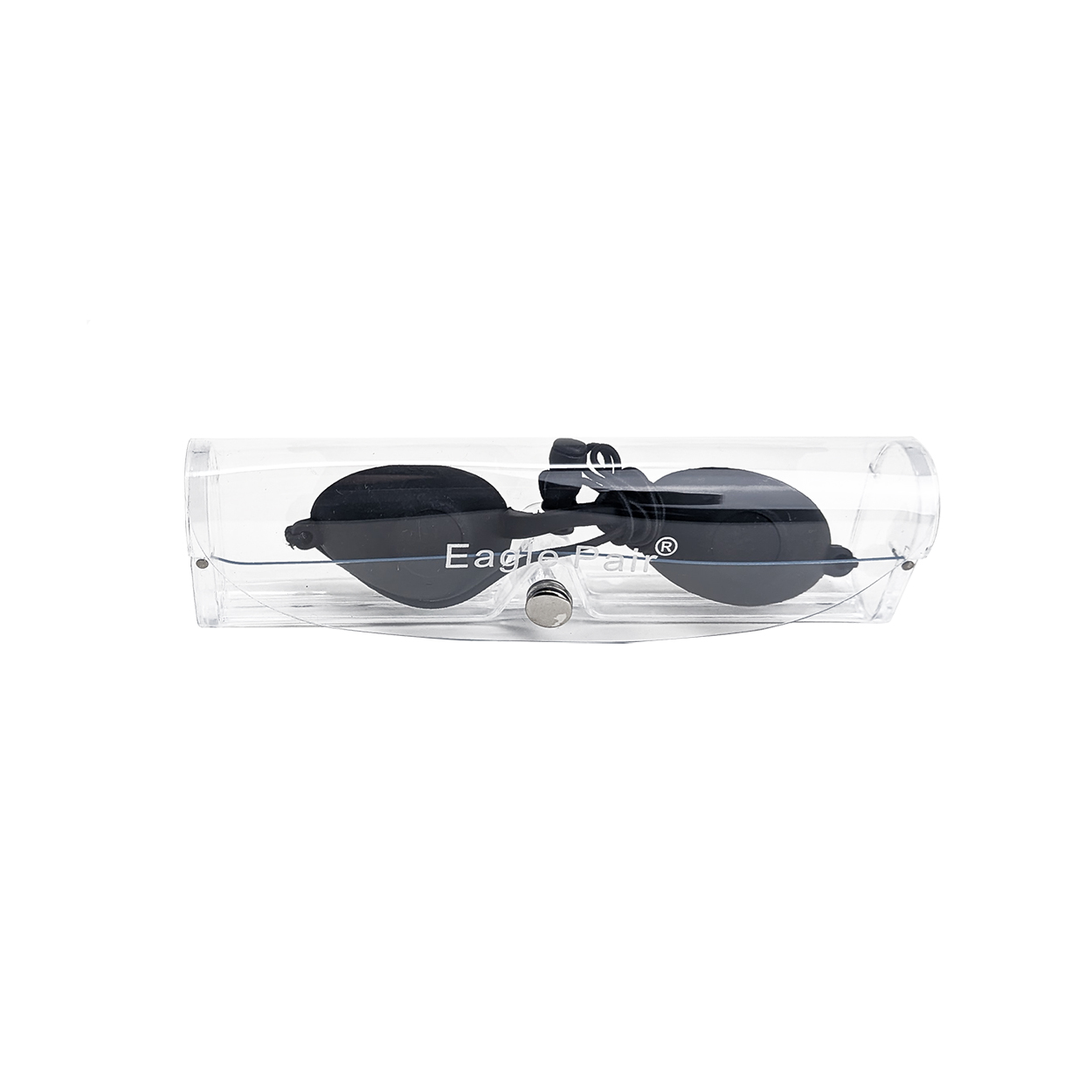

– 1 x Eye Covers

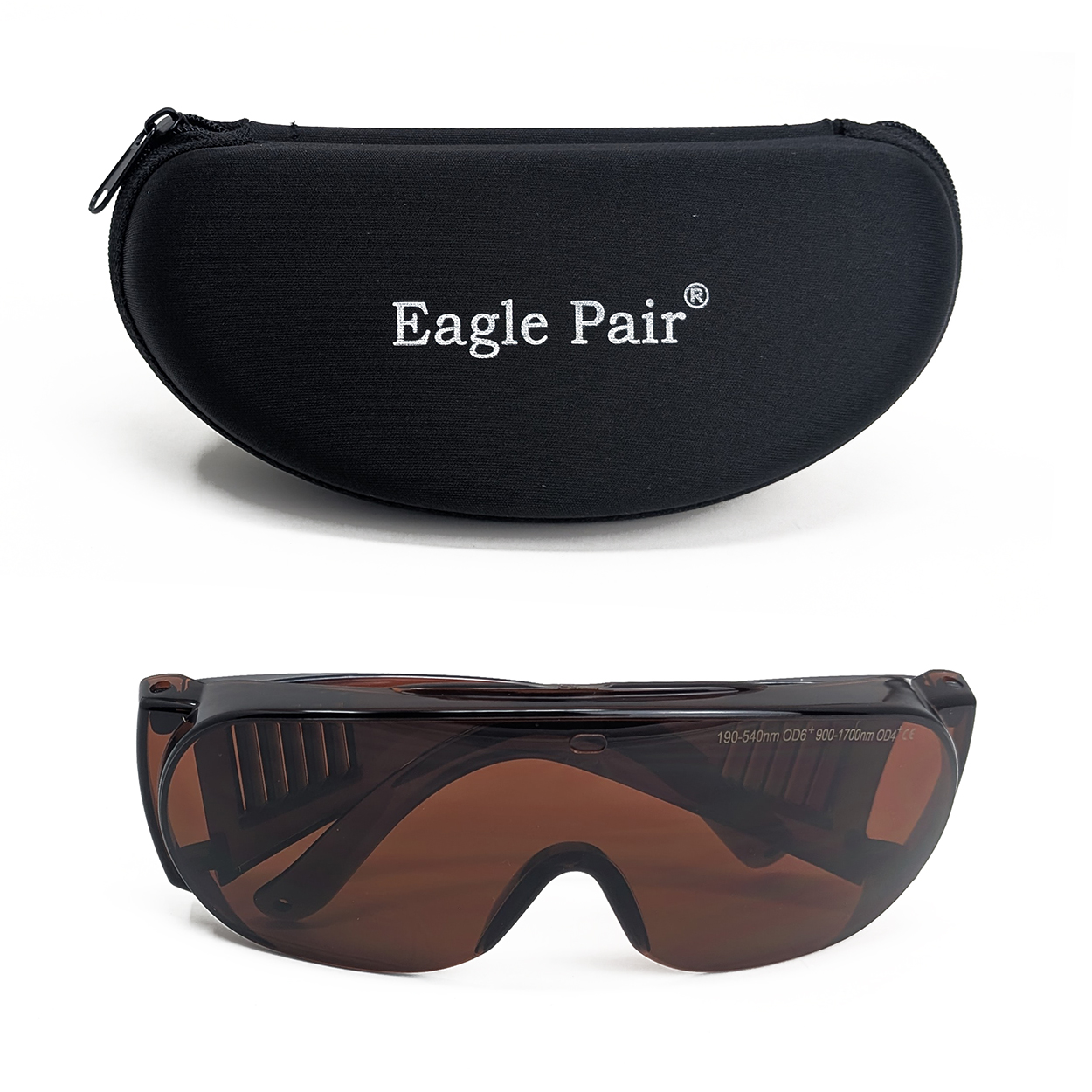

– 1 x Protective Glasses

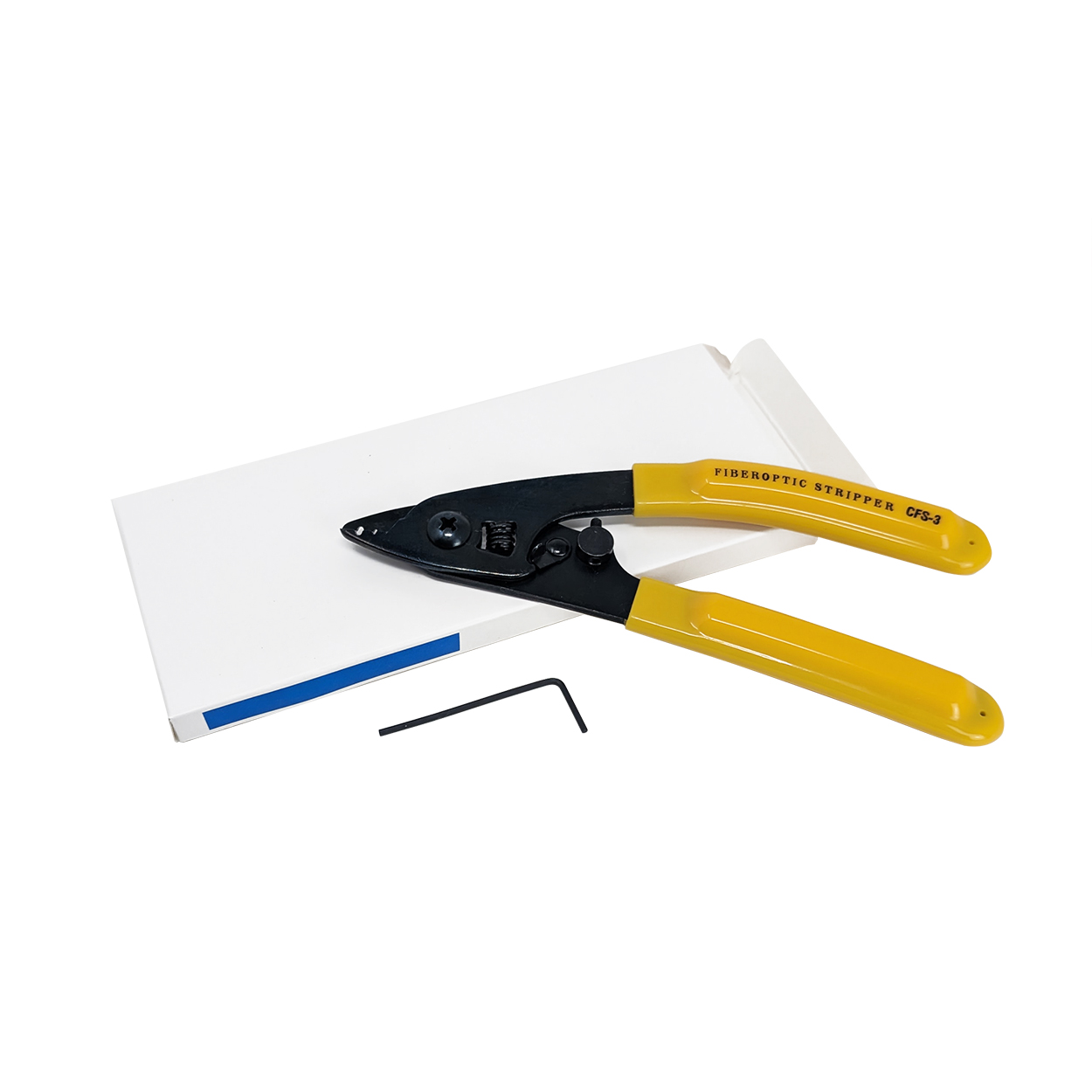

– 1 x Fibre Optic Stripper & Allen Key

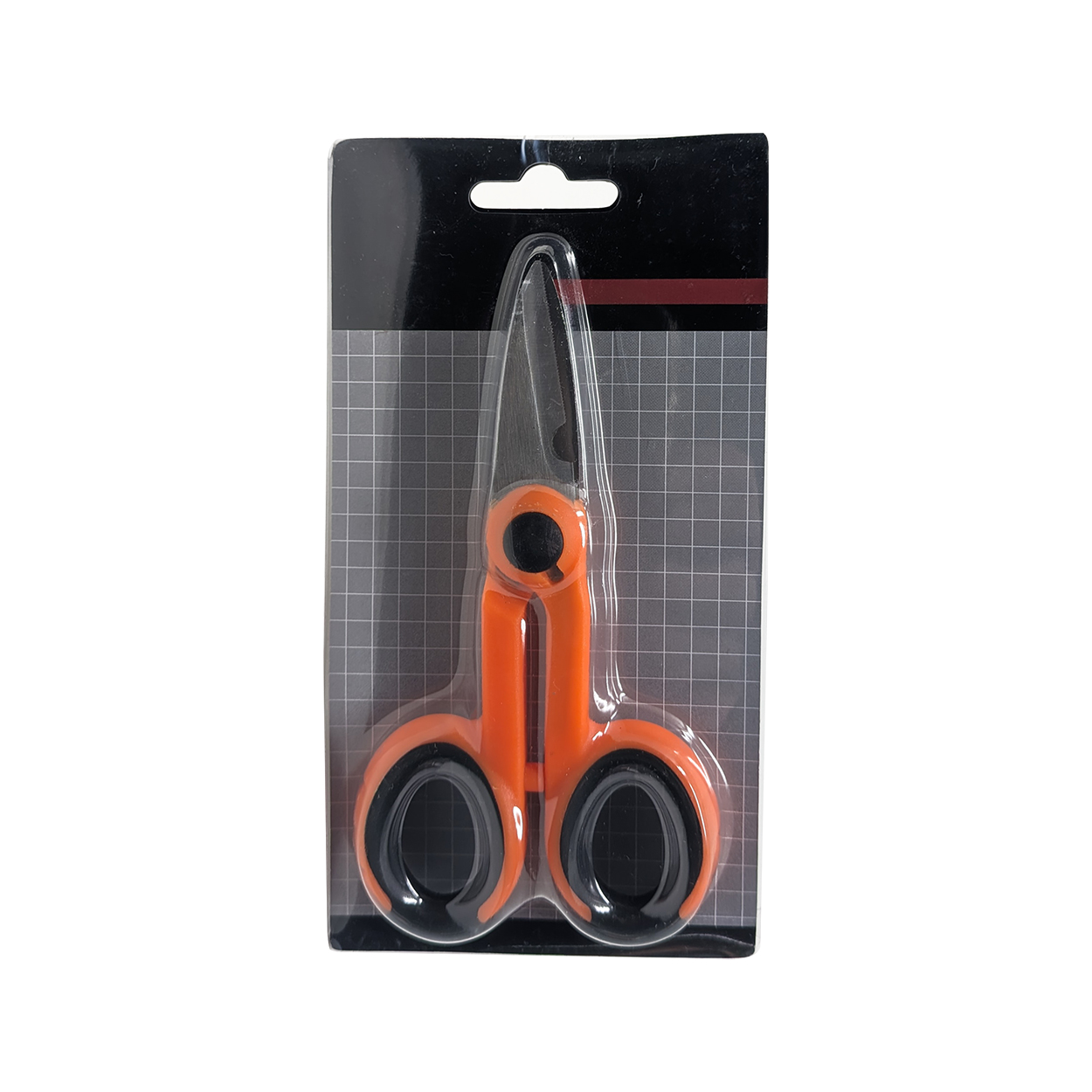

– 1 x Scissors

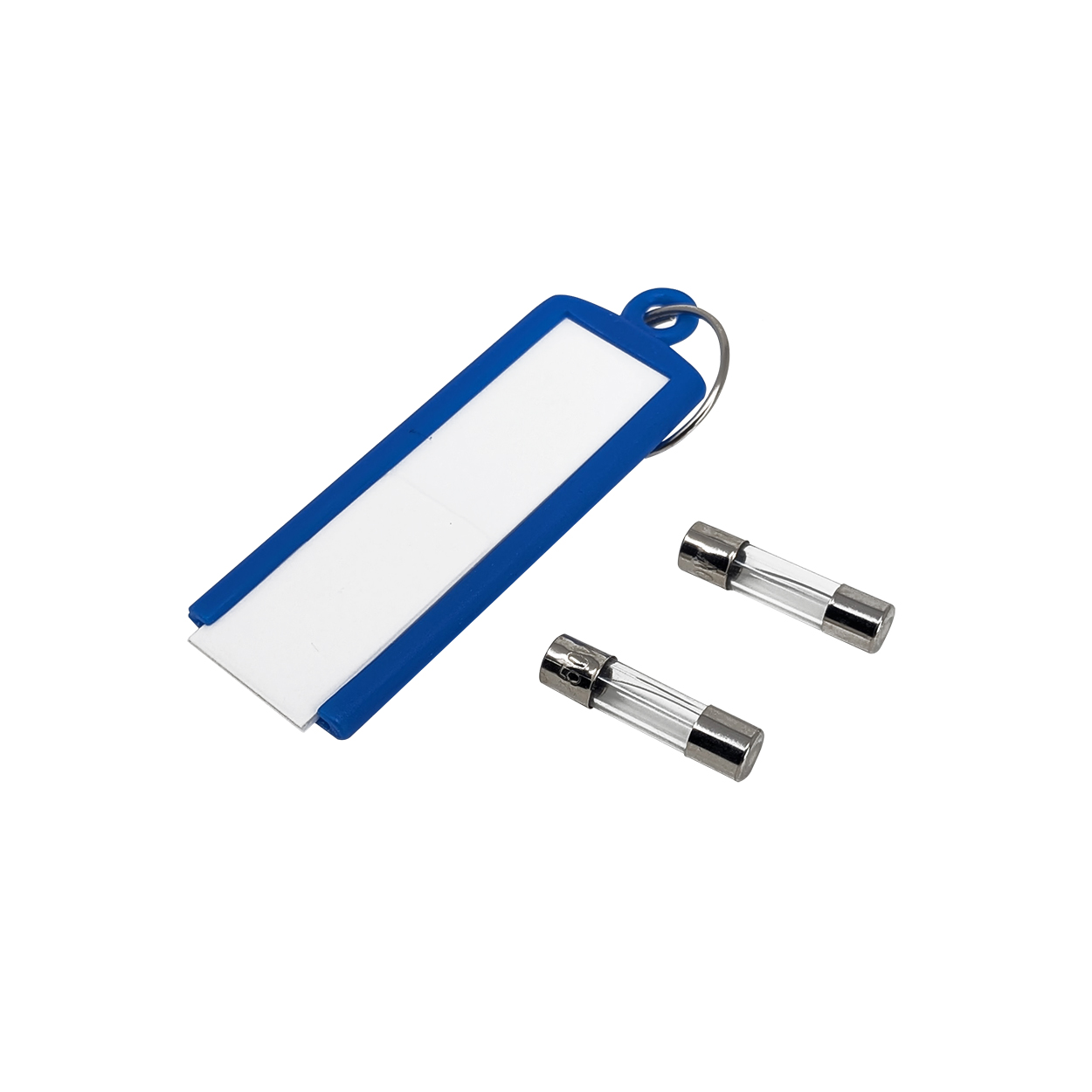

– 1 x Test Strip
– 1 x Fuse Replacement
– 1 × 400 μm Fibre Reel
– 1 × 600 μm Fibre Reel
